Packaged Terminal Air Conditioners

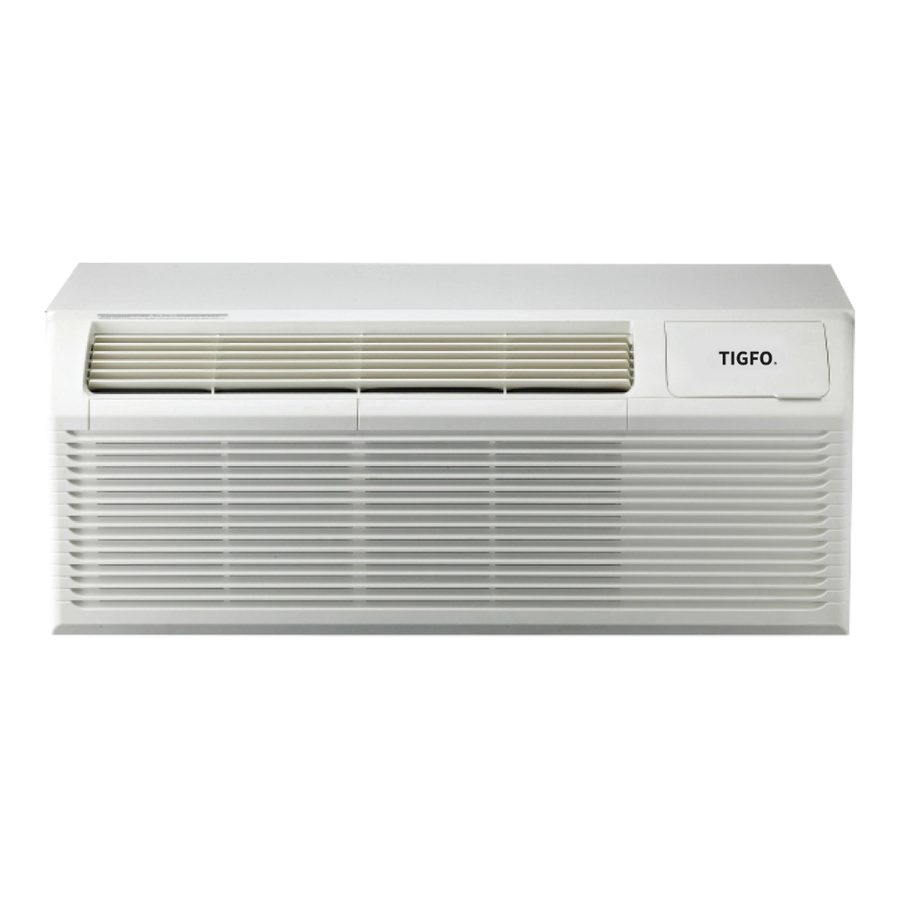

TIGFO TIG12PTAC220 12,000 BTU Packaged Terminal Air Conditioner Heat Pump 220V in White
SKU TIG12PTAC220
Container & quote pricingPricing and availability are provided to authorized dealers.
Apply for dealer pricingBuying a single unit? See where to buy Tigfo
AHRI CertifiedUL Certified
Dimensions: 19.3" × 42" × 21" (H × W × D)
Description
Description
Packaged terminal air conditioners (commonly known as PTAC) are ideal for application in hotels, motels, and apartments, where the environment of a single area or zone, such as a room, with an outside wall, needs to be controlled. As the name implies, a single package contains all the components of an air-cooled refrigeration and air-handling system. The entire package is self-contained. PTAC systems are designed for through-the-wall installation, with decorative outdoor grills. PTAC units come standard with a heat-pump.Features
- Fresh Air Ventilation.
- Auto restart.
- LED Display.
- Auto Defrost.
- Digital temperature control.
- Heat Pump.
Specifications
- System Type: 208-230V/60Hz/1Ph
- Current Cooling: 4.97/5.4 A
- Current Heating: 4.3/4.63 A
- Cooling Capacity (Min-Max): 12.000/11.800 Btu/H
- Heating Capacity (Min-Max): 10,800/10,500 Btu/H
- EER: 10.5 W/W
- Cop: 3.20 W/W
- Operation Temp/Indoor (Cooling/Heating): 62°F~90°F/32°F~80°F
- Operation Temp/Outdoor (Cooling/Heating): 64°F~109°F/23°F~76°F
- Compressor Type: Rotary
- Air Flow (Hi/Mi/Lo): 435/423/411 Cfm
- Unit Dimension (WxHxD): 42x21x16 Inches
- Net/Gross Weight: 117.9/143.3 Lbs
- Refrigerant/Charge: R410A/31.39 Ozs
- Indoor Noise Level – Hi/Mi/Lo: 53/50/45 Db(A)
- Outdoor Noise Level: 66 Db(A)
Specifications
| BTU Heat Rating | 11500 |
|---|---|
| Cooling Area (Sq. Ft.) | 800 |
| Energy Efficiency Ratio (EER) | 10.6 |
| Product Weight (lb.) | 117.9 |
